Air Supersonic Spray Coating System

You can rest assured to buy durable Air Supersonic Spray Coating System from Almac. As a supplier and manufacturer, we can provide you with high-quality products and considerate services, as well as timely delivery. We are a factory focusing on equipment manufacturing and R&D. We take product quality as the first requirement and use the customer's use effect to promote us. We are looking forward to cooperating with you and you can contact us at any time.

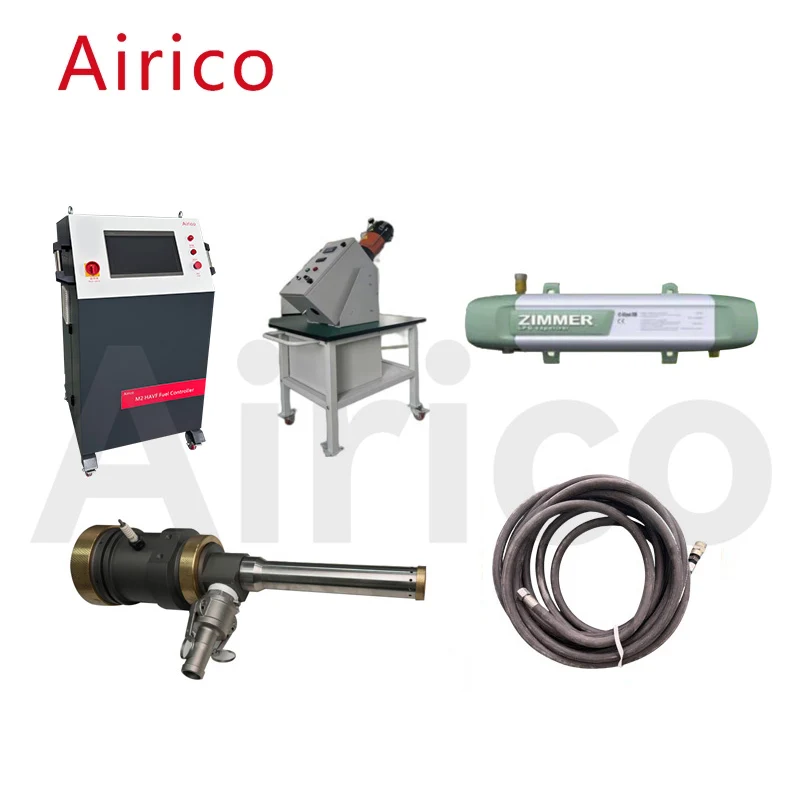

This product includes Powder feeder, Imported propane vaporizer, Almac-M2 Supersonic air equipment and Almac-M2 air supersonic system auxiliary air pipe. The powder feeder uses foreign technology, upgraded control system, convenient powder cleaning, nitrogen or argon gas for powder feeding, its powder feeding gas pressure reaches 0.4-1.2Mpa, and the powder feeding speed is 0~160g/min. Its excellent performance enables it to have a good working performance, its powder feeding accuracy is ±1%, and the powder feeding gas flow rate is 0-25L/min. In practical applications, it improves work efficiency.

Product Parameters

Advantages

The M2 Air Supersonic Spray Coating System has many functions and characteristics, and its advantages are mainly reflected in the following aspects:

1)Touch screen operation, the design structure of the air supersonic spraying system adopts a fully closed-loop automatic control structure, and all gases are controlled by imported pressure sensors and imported pressure regulating valves. The pressure can be monitored in real time and automatically reaches the process setting value.

2)The fuel used is propane, and the combustion aid is air, which is a very stable combustion mode among the gas models on the market;

3) The spray gun structure is designed according to the principle of rocket generators, the flame flow speed reaches more than 2000m/s, the output power is large and can be adjusted steplessly;

4)The spray gun adopts axial center powder delivery. This new injection method allows the powder to be better dissolved and evenly distributed throughout the flame, improving the coverage efficiency and coating quality;

6) It has the function of storing and calling process formulas, and parameters can be added, modified, and saved. 6) The system fuel adopts a fully closed-loop design, modular design, high-performance PLC control, stable and easy operation;

7) The prepared coating has excellent performance, with a low porosity of less than 1% (average porosity less than 0.5%) and high spraying efficiency (30KG powder per hour).
