Supersonic Spraying System

Welcome to buy the Almac-DJ3000 supersonic spraying system independently developed and manufactured by Suzhou Almac Machinery Equipment Co., Ltd. It not only has superior performance and is at the advanced level at home and abroad, but also can realize the automation of the spraying process, making the production process more convenient.

Suzhou Almac Machinery Equipment Co., Ltd. is a Chinese manufacturer that has been deeply engaged in the research and development and manufacturing of spraying equipment for many years. It has gathered a group of professional talents and absorbed foreign technology. It was the first in China to develop touch screen controlled plasma equipment (Almac-180) (Almac-3710) (Almac-100), supersonic spraying equipment (Almac-500) (Airoco-8800) (Almac-M2plus) (Almac-M3plus), arc spraying equipment (Airoco400-Almac1000), which are widely used in the spraying industry.

The supersonic spray system uses propane, propylene and other hydrocarbon gas or liquid fuels and high-pressure oxygen to burn in a combustion chamber or special nozzle to produce a high-temperature and high-pressure flame flow (temperature can reach 3200℃), and the flame speed is as high as 15002000m/s or more. Then, the powder is sent into the flame axially or radially to produce molten or semi-molten particles, and the particles are deposited on the pretreated substrate surface at high speed (300600m/s) to form a coating.

The flame speed of the supersonic spray system is very fast, which gives the spray particles extremely high kinetic energy, allowing them to collide at high speed, making the particles in the coating more tightly connected, and having excellent wear resistance and corrosion resistance. Therefore, the supersonic spray system is widely used in aerospace, automobile manufacturing, energy, chemical industry, medical and national defense.

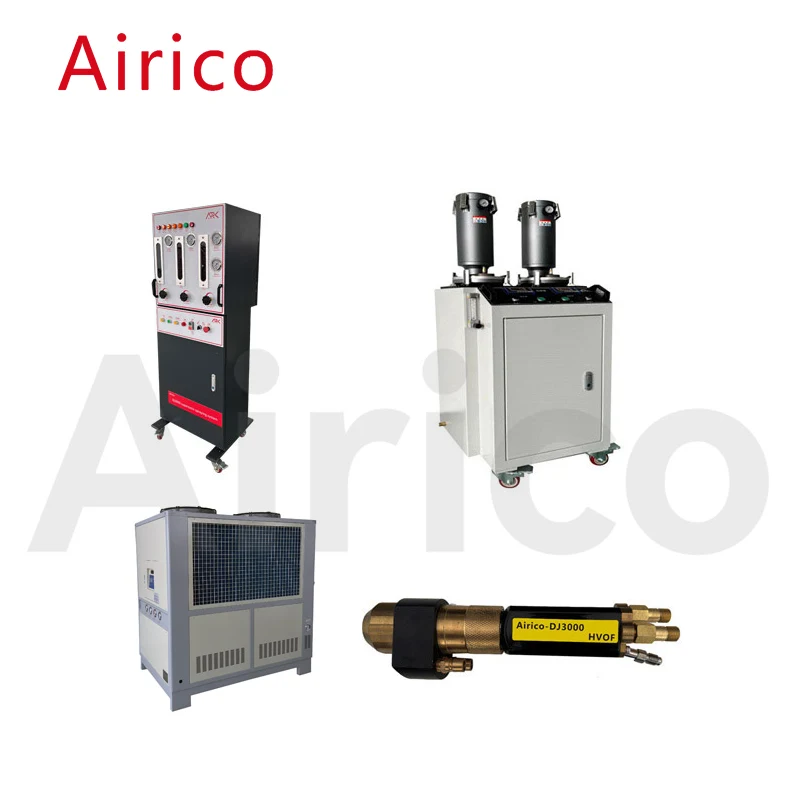

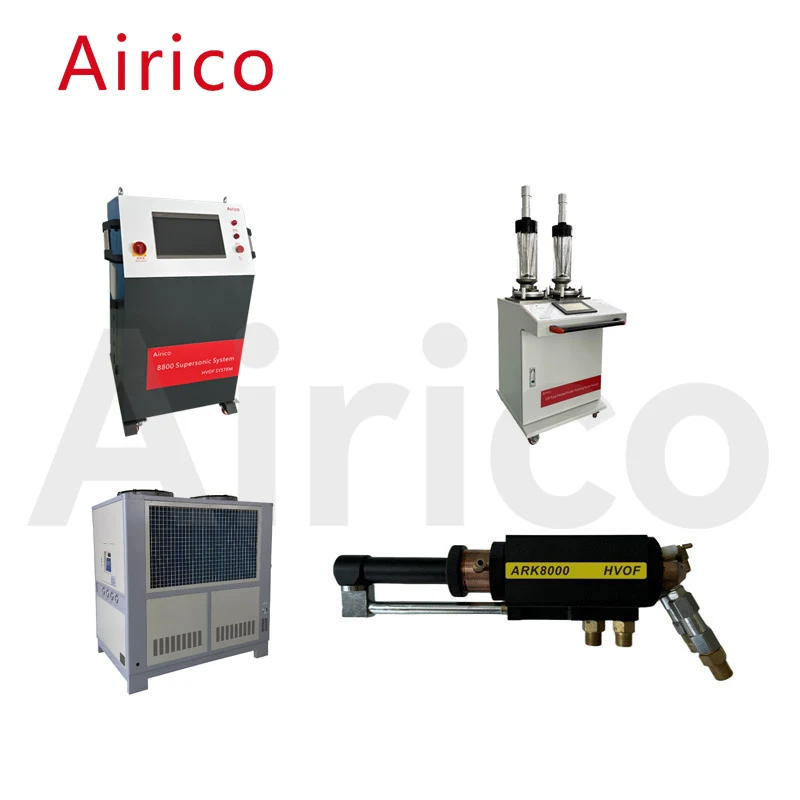

Almac-DJ3000 Control cabinet for supersonic spraying system

The Almac-DJ3000 supersonic flame spraying system has advanced levels compared to similar foreign products, with superior performance and easy operation. It can achieve automated operation of the spraying process, monitor the system in real-time, dynamically control the working process of the spray gun, and respond immediately to system failures.

Almac-DJ3000 Parameter Table of Supersonic Control Cabinet

Number	Project	Basic parameters
1	Input power supply	single phase AC220V、50hz
2	Input power	300W
3	Control type	PLC Control
4	Gas type and pressure	Propane 0.65Mpa
5	Oxygen pressure	1.2Mpa
6	Air pressure	0.8Mpa
7	Nitrogen pressure	1.2Mpa
8	Hydrogen pressure	0.3-0.4Mpa
9	Control Cabinet dimensions	600x600x1760mm
10	Control Cabinet weight	130KG

Powder feeder for supersonic spraying system

The Almac-DJ3000 supersonic high-speed flame spraying powder feeder is a device used to store spraying powder and deliver it to the spray gun according to process requirements. Nitrogen gas is used as the powder feeding gas, and the sprayed powder is transported to the outlet of the powder feeder through the atomization vibration of the powder feeding gas. It leaves the powder feeding bucket together with the powder feeding gas and enters the spray gun. The speed of powder feeding can be adjusted by adjusting the potentiometer on the control cabinet panel.

Almac-DJ3000 Parameters of powder feeder for supersonic spraying system

Number	Project	Basic parameters
1	Powder delivery method	Scraper pneumatic type
2	Double tube capacity	6.0L
3	Sending powder gas	Nitrogen
4	Powder delivery air pressure	1.2-1.3Mpa
5	Powder feed rate	0-160g/min
6	Powder delivery accuracy	±1%
7	Powder delivery gas flow rate	400-800L/h
8	External dimensions of powder feeder	500x460x1300mm
9	Weight of powder feeder	50KG

Cooling system for supersonic spraying system

The dual compressor drive reduces the overall volume of the machine and increases your space; Mainly used to effectively cool the nozzle and sealing ring, achieving the purpose of prolonging the service life of the nozzle and sealing ring.

Almac-DJ3000 Parameter table of cooling system for supersonic spraying system

Number	Project	Basic parameters
1	Unit appearance	1330x780x1310mm
2	Circulating water capacity	250KG
3	Refrigeration capacity	32.2KW
4	Fluctuations in outlet water temperature	5℃
5	Power supply	3P AC380 50hz/60hz
6	Compressor	Dual compressor	Origin: Daikin, Japan
7	Outlet pressure	4-8KG adjustable	Effluent flow rate	4m³/h
8	External circulation pump	Rated power 1.1KW	Rated current 1.5A
9	Refrigerant injection amount	11KG	Refrigeration media	F22
10	Fan power	85Wx2
11	Total input power	13.5KW
12	Weight	450KG

Ultrasonic spraying equipment spray gun

The Almac-DJ3000 supersonic flame spray gun uses propane as fuel, oxygen as combustion assisting gas, air and water as cooling coal, and nitrogen as powder feeding; The spray gun can work continuously and stably for a long time.

Almac-DJ3000 Parameter Table of Spray Gun for Supersonic Spraying System

Number	Project	Basic parameters
1	Flame speed	2800m/s
2	Flame temperature	3200℃
3	Spray gun power	100KW（Conversion value）
4	Powder particle velocity	550-650m/s
5	Cooling method	Water cooling/air cooling
6	Cooling water flow rate	9.5L/min
7	Coating porosity	＜1%
8	Bond strength	＞70Mpa
9	Suitable powder size for spraying	5-120μm
10	Gas (propane) pressure	0.65Mpa
11	Oxygen pressure	1.1Mpa
12	Air pressureA	0.75Mpa
13	Nitrogen pressure	1.2Mpa
14	Hydrogen pressure	0.35Mpa
15	Spray gun external dimensions	420x230x50
16	Spray gun weight	2.8KG
