Cold Spray Application System

Suzhou Almac Machinery Equipment Co., Ltd. is a Chinese manufacturer that has been deeply engaged in the research and development and manufacturing of spraying equipment for many years. It has gathered a group of professional talents and absorbed foreign technology. It was the first in China to develop touch screen controlled plasma equipment (Almac-180) (Almac-3710) (Almac-100), supersonic spraying equipment (Almac-500) (Airoco-8800) (Almac-M2plus) (Almac-M3plus), arc spraying equipment (Airoco400-Almac1000), which are widely used in the spraying industry. The coating quality has reached the level of similar foreign products and has won unanimous praise from domestic and foreign customers.

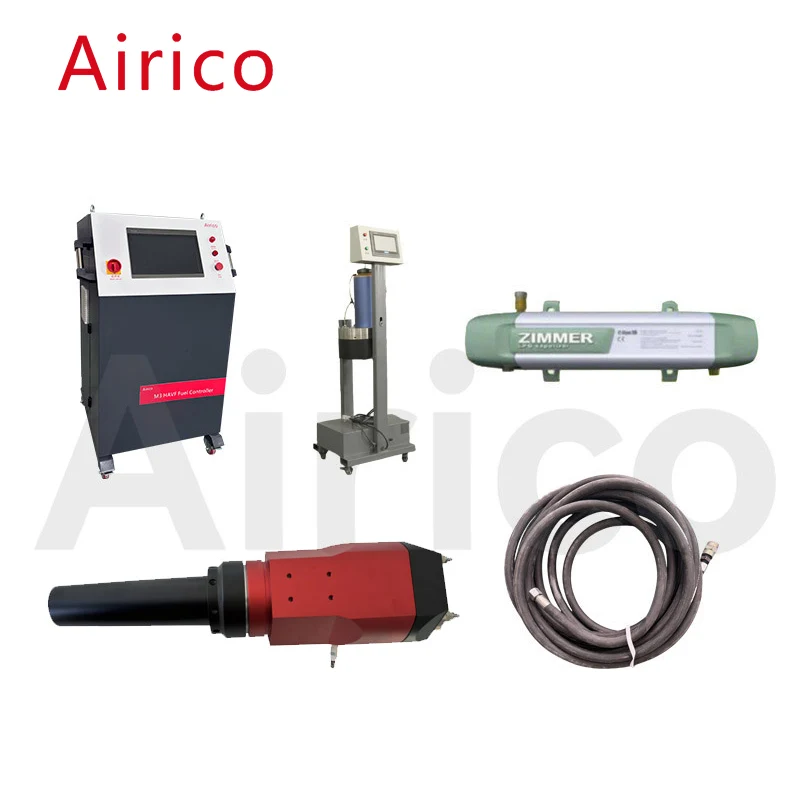

The Almac-M3 cold spray application system is equipped with an intuitive touch screen operation panel, and its equipment structure adopts a cutting-edge fully closed-loop automatic control system. In terms of gas management, the system uses all imported precision pressure sensors and pressure regulators, which can track gas pressure in real time and automatically adjust to the set value required by the process. Propane and air are used as fuel and combustion aid respectively, which together constitute the most reliable and stable combustion configuration among gas models on the market.

The design of the spray gun draws inspiration from rocket engines. Its excellent spray speed is as high as more than 2000 meters per second. It not only has powerful output power, but also can be adjusted steplessly to meet different needs. The spray gun innovatively adopts axial center powder feeding technology, which ensures that the powder can be fully melted and evenly distributed in the flame, thereby greatly improving the coverage efficiency and overall quality of the coating.

In addition, the system also has a built-in process recipe management function, and users can easily add, edit or save process parameters according to actual needs. At the fuel control level, the system adopts a fully closed-loop design concept, combined with a modular structure and a high-performance PLC controller to ensure stable, reliable, convenient and efficient operation.

The coating prepared by the Almac-M3 cold spray application system has excellent performance, with extremely low porosity, an average porosity of less than 0.5%, and a spraying efficiency of up to 30 kg of powder per hour, demonstrating excellent performance.

Almac-M3 Cold spray control system

The Almac-M3 cold spray control system has advanced levels compared to similar foreign products, with superior performance and easy operation. It can achieve fully digital operation of the spraying process, and real-time monitoring of the spraying parameters of the system, which can immediately respond to system failures.

Almac-M3 Basic parameters of cold spray application system control system

Powder feeder

This type of powder feeder adopts foreign technology, upgrades the control system, and is convenient for cleaning powder. The main gas of the spray gun is used as the powder feeding gas. The sprayed powder is transported to the outlet of the powder feeder through the rotation of the porous powder feeding tray. The powder leaves the powder feeding bucket together through the gas pressure and enters the spray gun. The speed of the servo motor on the touch screen is adjusted to adjust the powder feeding amount.

Powder feeder parameter table

Imported propane vaporizer

Almac-M3 Supersonic air equipment Spray gun

The Almac-M3 spray gun uses propane as fuel, air as combustion and cooling gases, and nitrogen for powder feeding; The spray gun can work continuously and stably for a long time.

Almac-M3 Basic parameters of spray gun

Almac-M3 Cold spray application systemsystem auxiliary air pipe
